Johnson Creek - Fish Hatchery Park Habitat Restoration

The Johnson Creek - Fish Hatchery Park Habitat Restoration Project restored the stream and pond to provide habitat for valuable fish and wildlife. The project improved fish passage between the pond and stream and it will improve water quality within the Rouge River watershed.

The only public access point to Johnson Creek is Fish Hatchery Park, which was the first registered fish hatchery in the nation. Fish and wildlife habitat associated with Johnson Creek had been lost and impacted by sedimentation, loss or conversion of riparian vegetation, and streambank armoring, reducing its viability as a cold-water fishery (the only one remaining in the Rouge River). A spring-fed pond, which flows into Johnson Creek, had been degraded by sediment-laden stormwater runoff from the unimproved parking lot at Fish Hatchery Park. The resulting sediment has been deposited into the pond to a point where it was less than 18 inches deep. This sediment would escape from the pond through the outlet structure and was impairing the stream bottom habitat in Johnson Creek. In addition to this, streambanks in the park had been impacted by the removal of native vegetation and historic placement of a concrete wall.

To address this concern and to restore the habitat at Johnson Creek, the project naturalized the streambanks, removed accumulated sediment in the pond, modified the pond outlet to create a fish passage channel between the pond and the creek, and installed a vegetated bioswale to improve water quality of runoff. In addition to these improvements, the project included the planting of over 250 native trees and over 300 native shrubs.


Funding and Parnters

This project was funded by the U. S. EPA Great Lakes National Program Office through an approximatly $2.7M Great Lakes Restoration Initiative (GLRI) grant received by the Alliance of Rouge Communities for two projects (Tamarack Creek and Johnson Creek) Grant #GL-00E002344-0 & GL-00E02478-0 . Partners in this project include the U.S. EPA, GLRI, ARC, City of Sountfield and the Rouge River Advisory Council (RRAC)

Where and When

Johnson Creek is located in Northville, Michigan and is a tributary of the Middle Branch of the Rouge River. Project design began in 2018 with construction starting in the summer of 2020 and was completed in 2022.

Project Outcomes

Naturalized and stabilized 1,250 ft. of Johnson Creek’s streambank for improved wildlife habitat Removed 2,000 cubic yards of sediment in Fish Hatchery Pond which created deeper water for fish habitat Modified the outlet of the pond which created a fish passage channel between the pond and the creek Installed a vegetative swale to filter stormwater from the parking lot before entering the pond

Photo History of Project:


Conditions Before Restoration

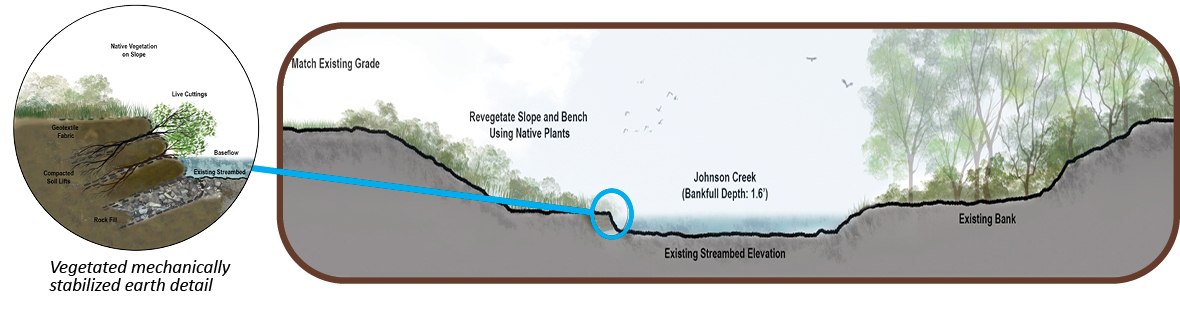

Conceptual Design

Photo Gallery of Restoration Activities

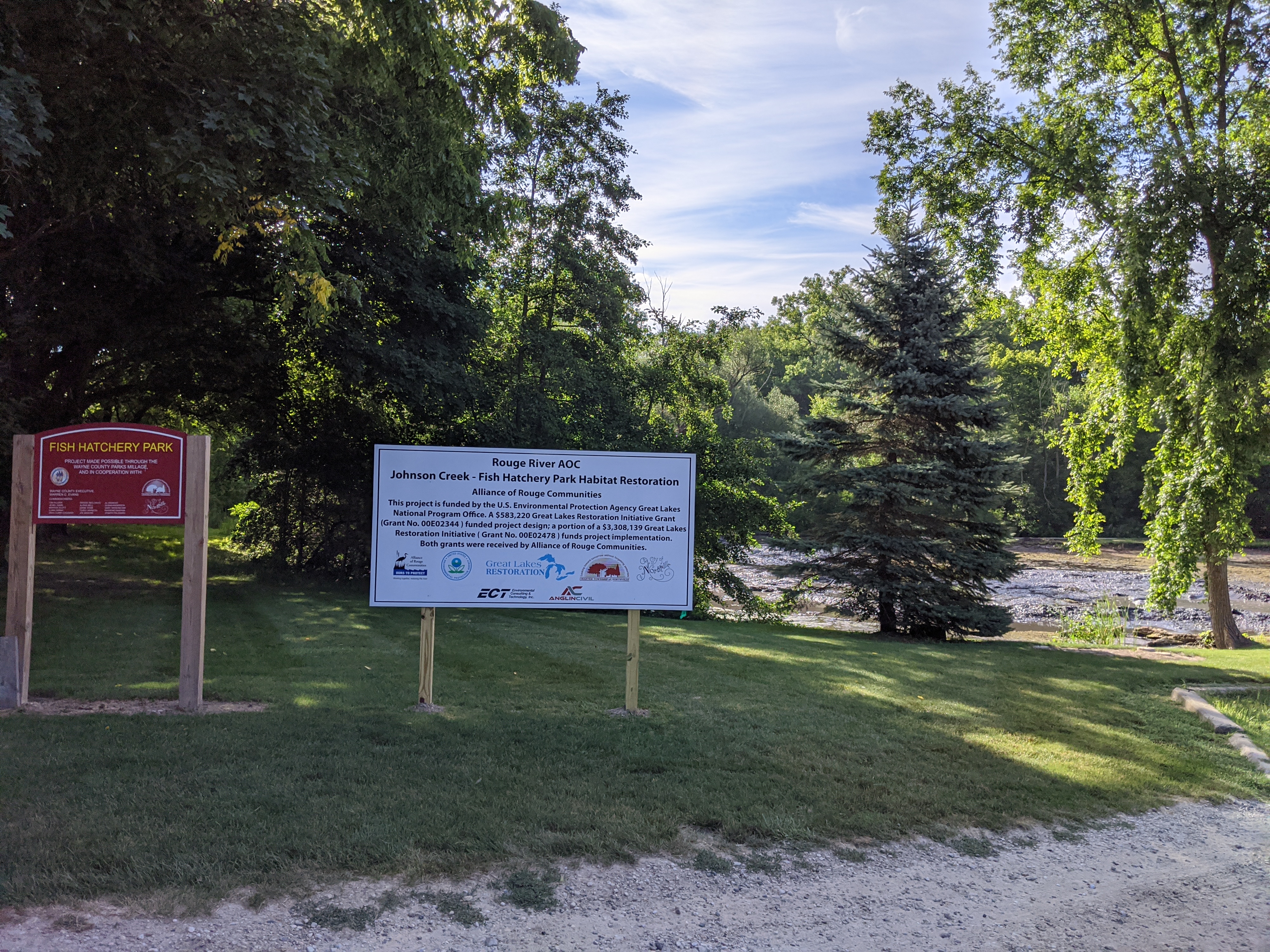

project sign

Project sign




inspection of separation blanket

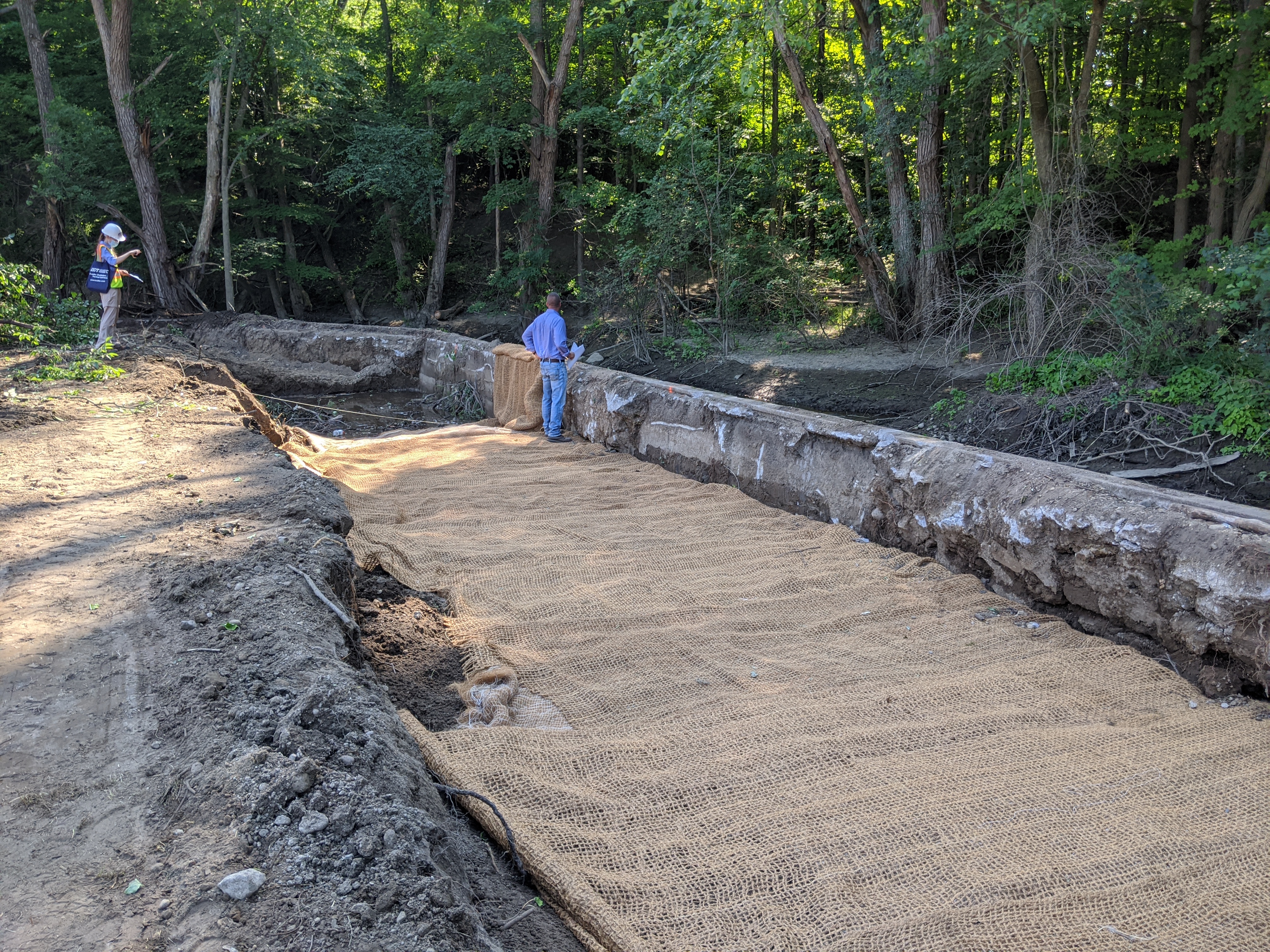

Inspection of brush layering separation blanket




installation of brush layering

Installation of brush layering




concrete wall removal

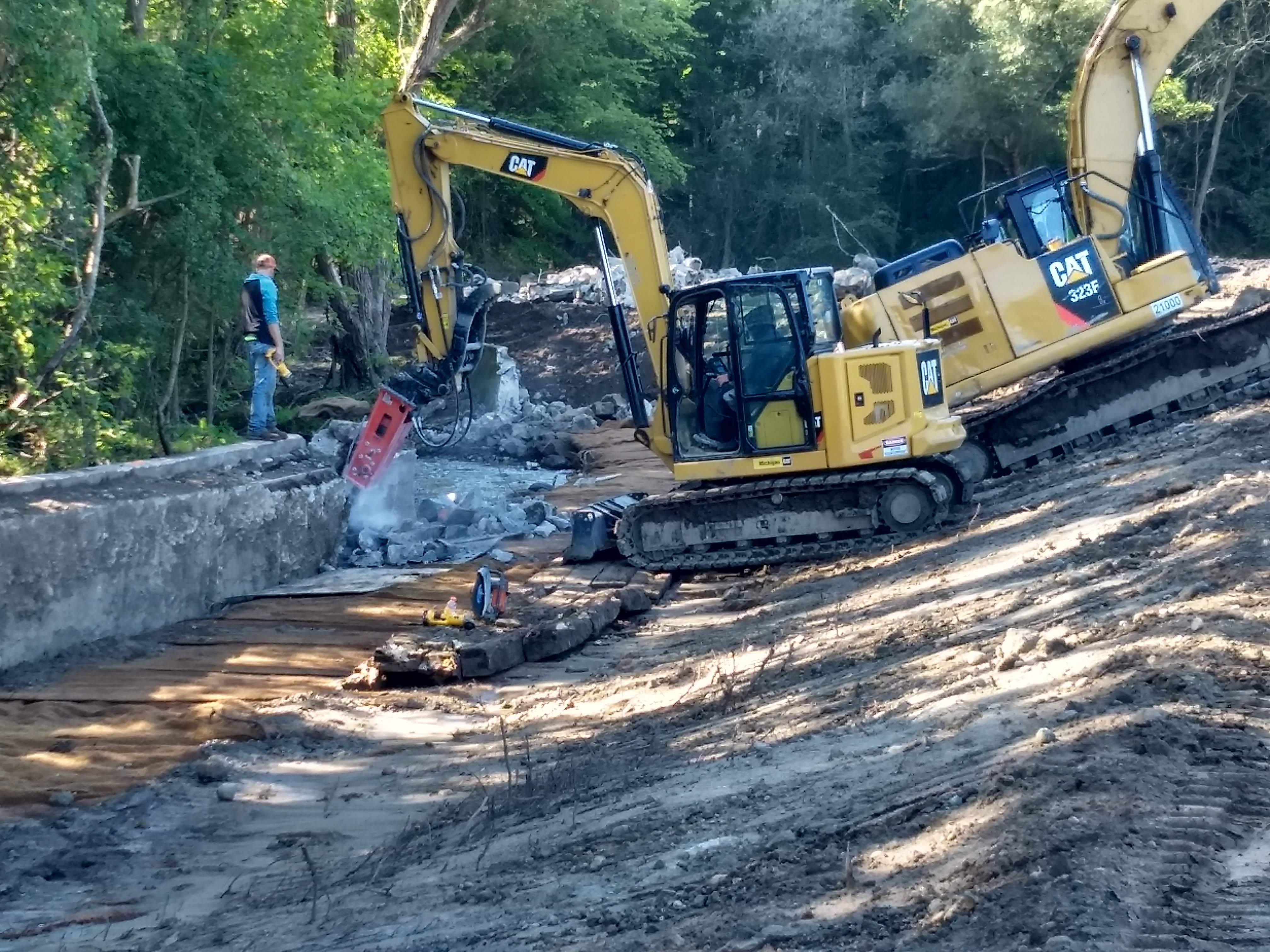

Removal of concrete wall




naturalized streambank

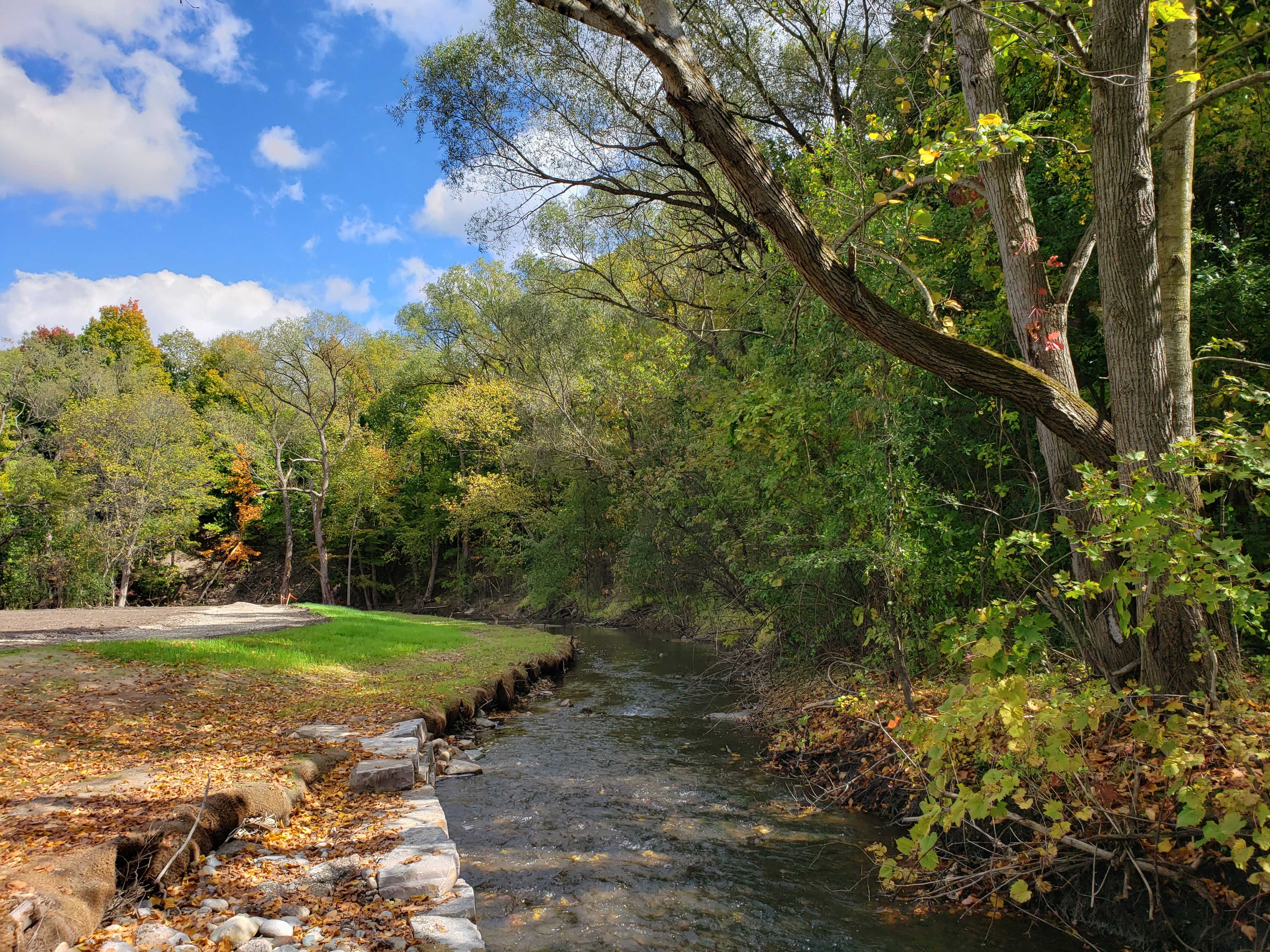

Concrete wall removed and streambank naturalized




floodplain bench creation

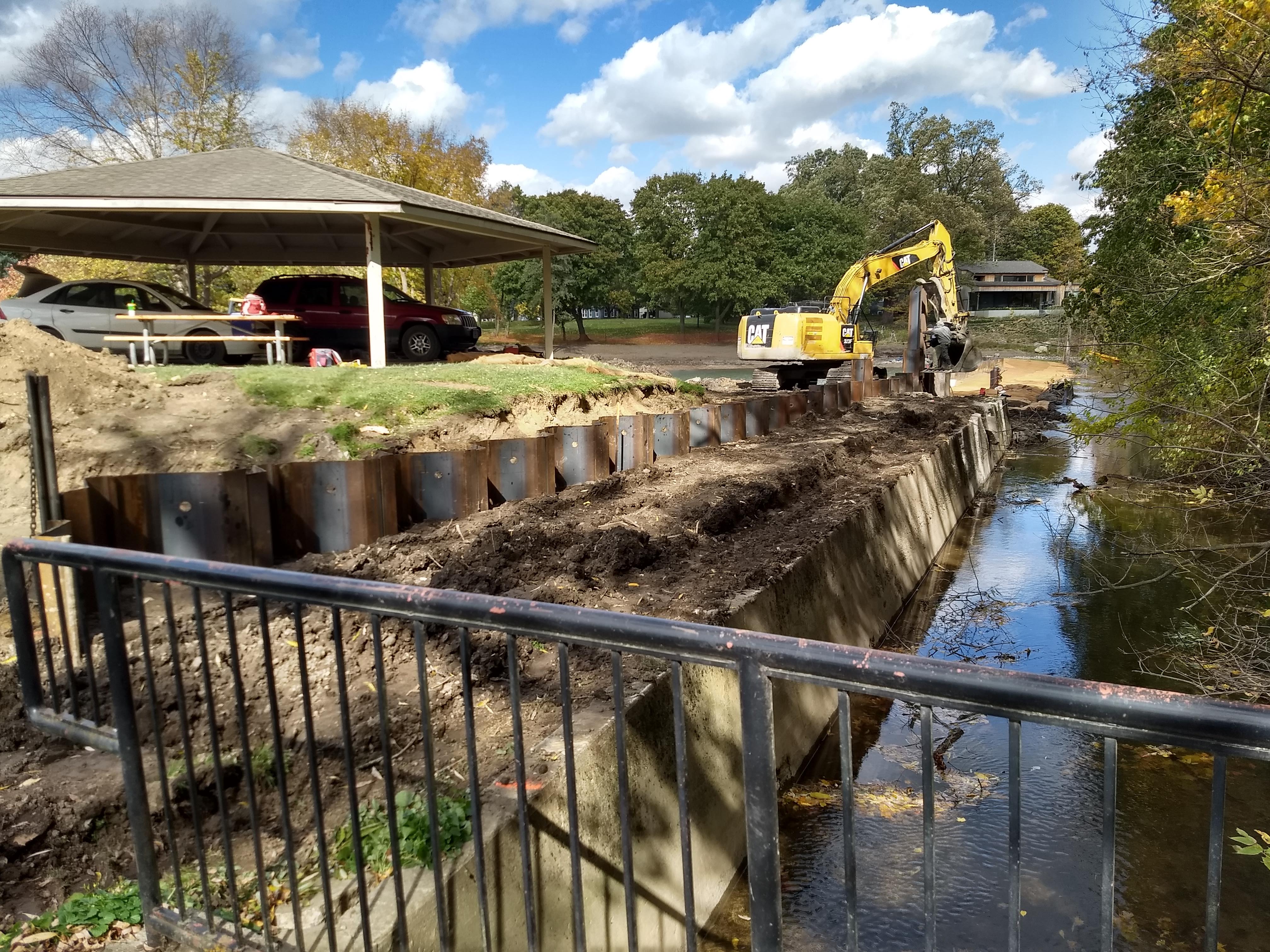

Creation of floodplain bench

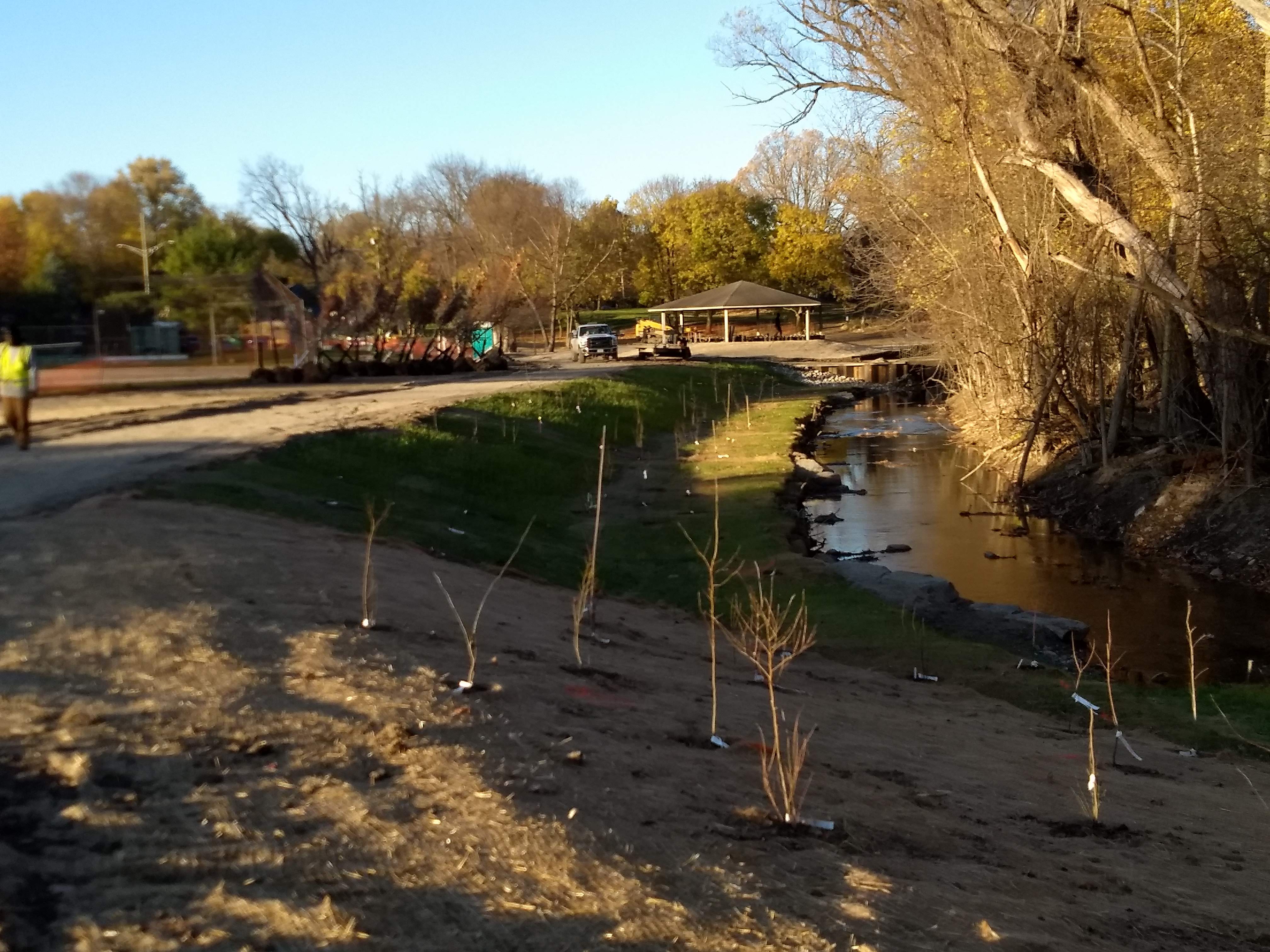

trees and shrubs planted

Trees and shrubs planted




established vegetation

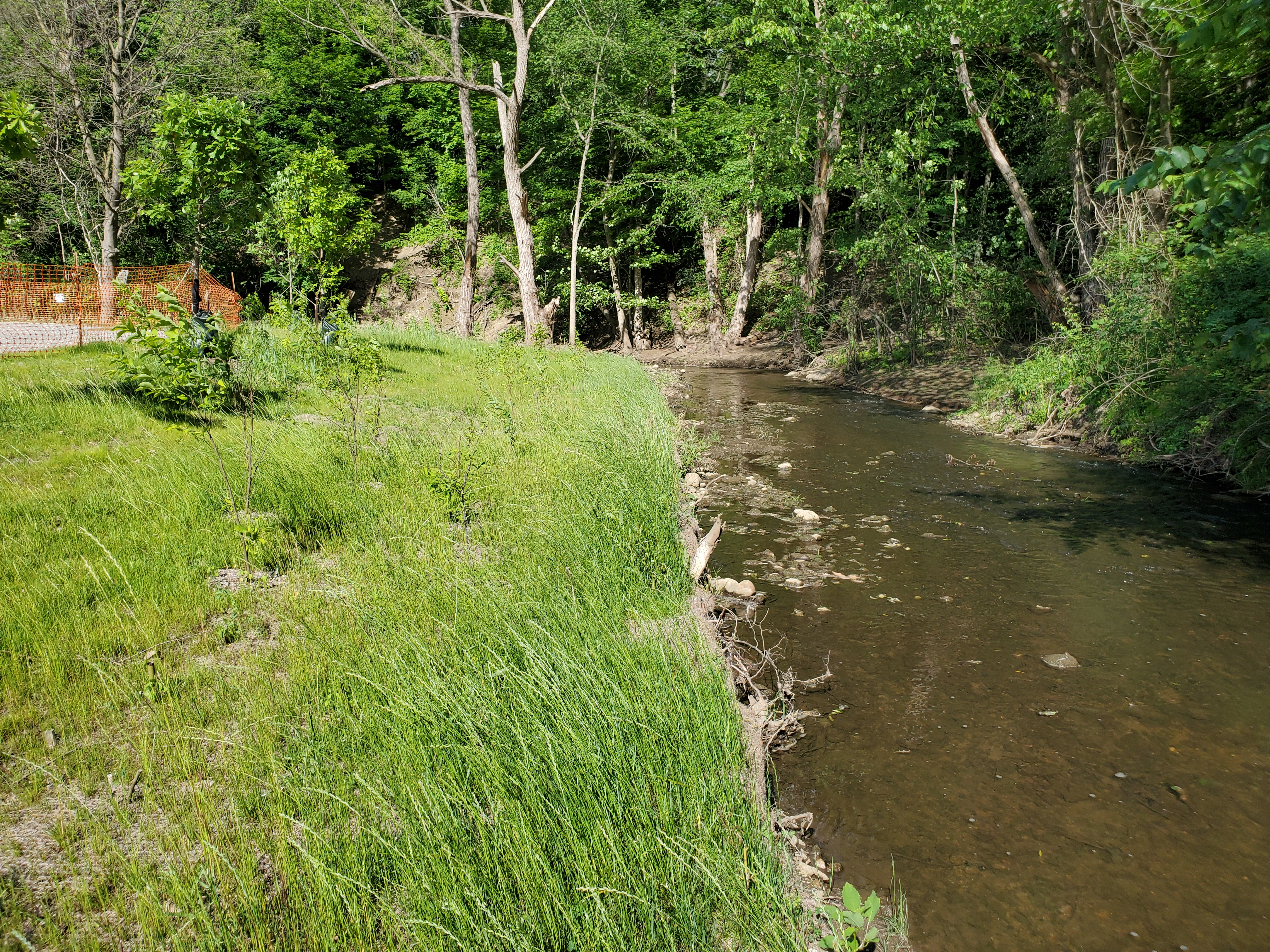

Vegetation establishing along river




planting

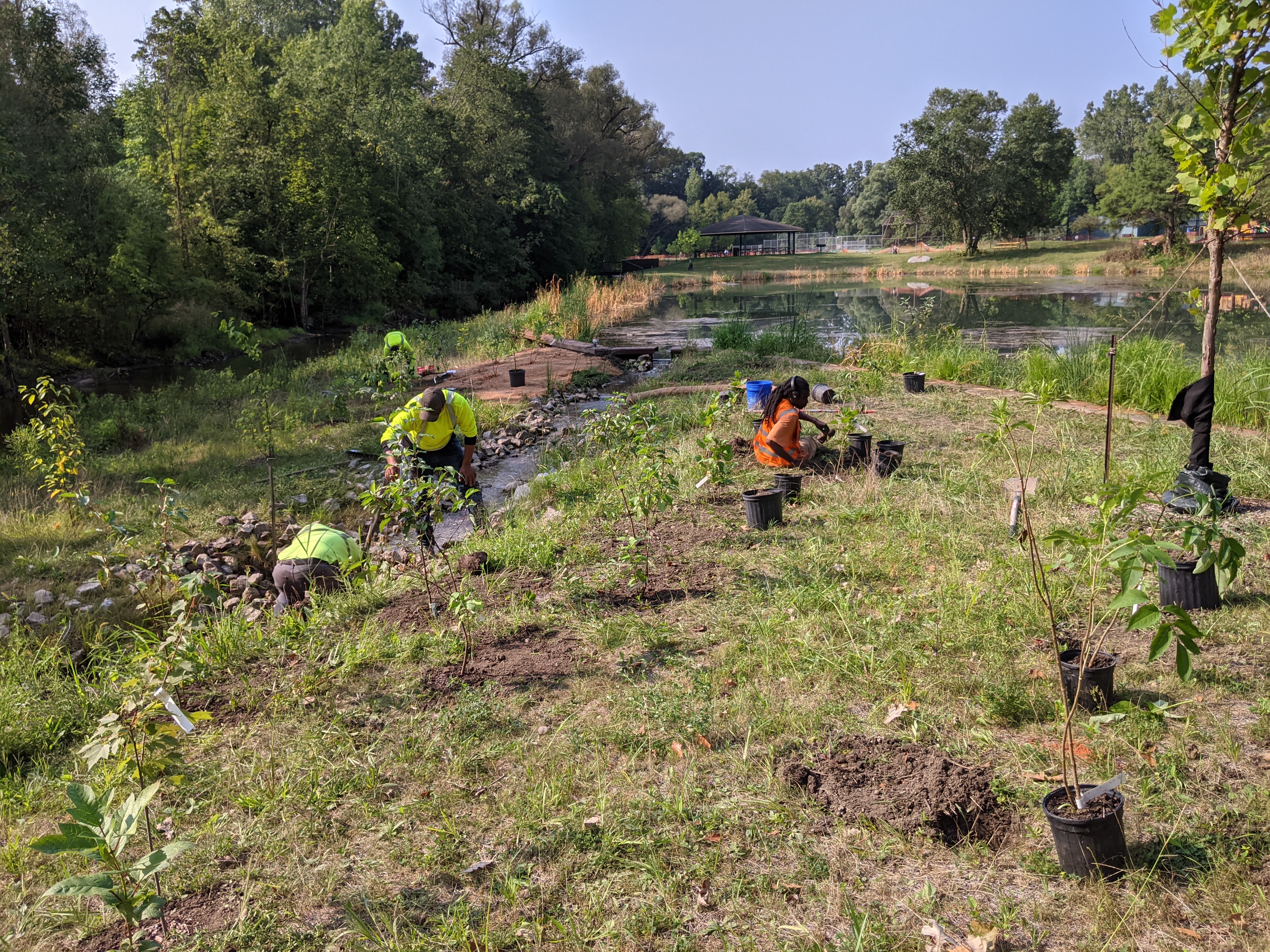

Planting of shrubs and trees




vegetation estabishment

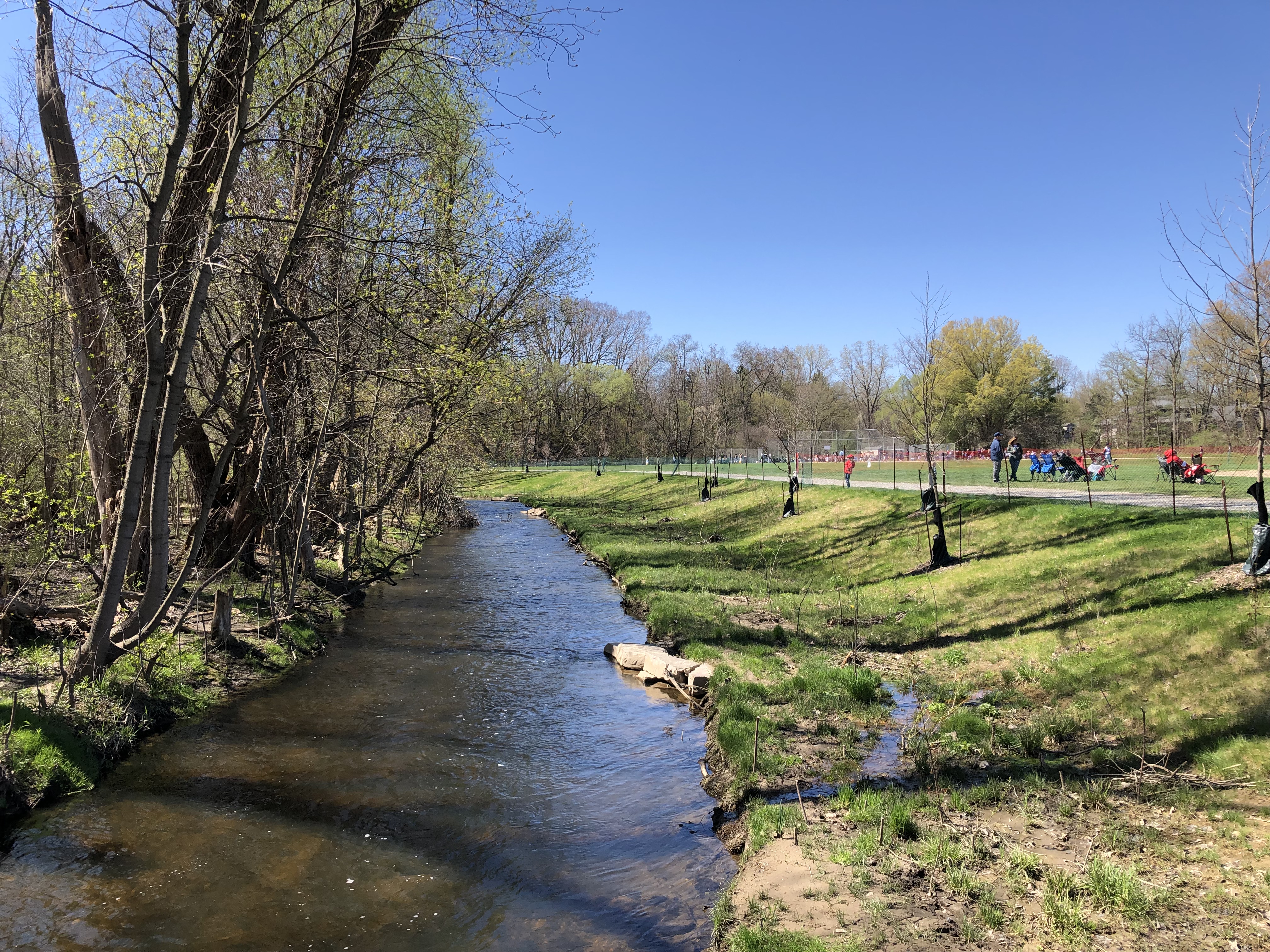

Vegetation establishment




restored Johnson Creek

Restored Johnson Creek
